ACL Pleuellagersatz Audi 5 Zylinder 20VT S2 RS2 Urquattro 20V 200 20V S4 S6 AAN

ACL Pleuellagersatz
Audi 5 Zylinder 20V Turbo S2 RS2 Urquattro 20V 200 20V S4 S6 AAN
Racing Pleuellagersatz für den Rennsport

Abmessung:
Version 1 Standardmaß (Artikel: 5B1606H-STD)
Version 2 Standardmaß +0,001" Extraspiel
Version 3 0.25mm Übermaß
Version 4 0.5mm Übermaß

Auch verfügbar in 0.25 und 0.5 Übermaß

Herstellerdaten:
Hersteller: ACL Performance
Herstellernummer: Artikel: 5B1606H-STD

Daten:
Dreistofflager für den Rennsport, ideal für hohe Temperaturen und Drehzahlen.
1. Stahlplatte
2. Kupferlaufschicht
3. Nickelsperrschicht
4. Weißmetal Kupfergleitschicht

Fahrzeuge:
Motor: 5 Zylinder 20V Turbo / 20V Saugmotor
Audi S2 3B ABY
Audi RS2 ADU
Audi Urquattro 20V
Audi 200 20V 3B
Audi S4 S6 C4 AAN
Audi 20V 7A NM

Technische Daten

Sizes	STD, .025, .25, .50	STD
Oil Clearance	Standard	+ 0.001" Extra
Half Type	Identical Halves
Material	Tri-metal Hardened steel backs
Min Std Shaft Size	1.8802" /47.758mm
Max Std Shaft Size	1.8810" /47.778mm
Min Std Tunnel Size	1.9921" /50.600mm
Max Std Tunnel Size	1.9929" /50.619mm
Max Wall at Crown	0.0553" / 1.405mm	0.0548" /1.392mm
Max Overall Length	0.748" / 19.00mm

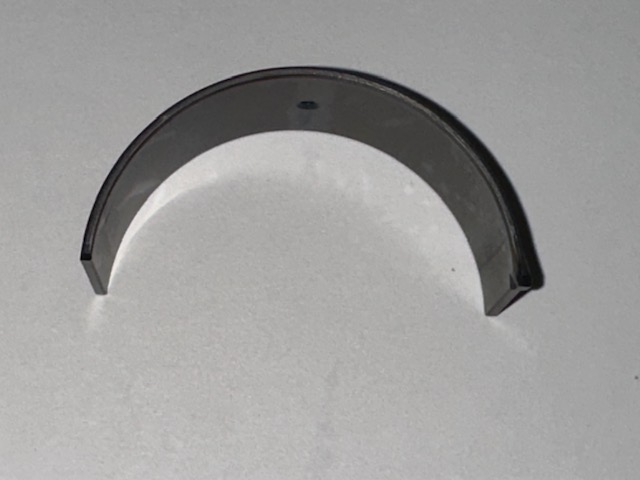

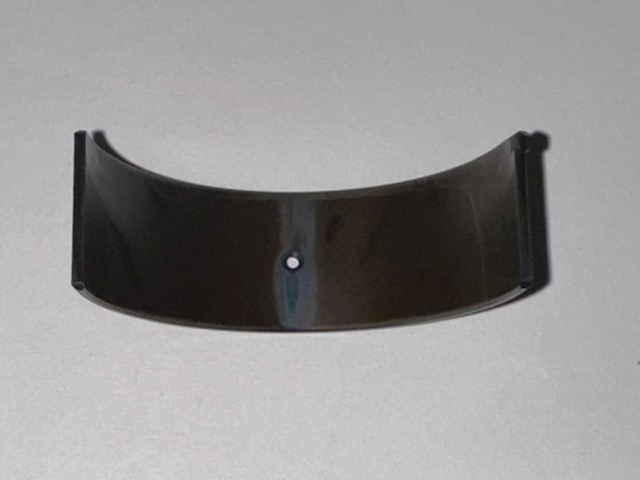

Notes	Bearing has 1.65mm oil hole at crown

Sizes	STD, .025, .25, .50	STD
Oil Clearance	Standard	+ 0.001" Extra
Half Type	Identical Halves
Material	Tri-metal Hardened steel backs
Min Std Shaft Size	1.8802" /47.758mm
Max Std Shaft Size	1.8810" /47.778mm
Min Std Tunnel Size	1.9921" /50.600mm
Max Std Tunnel Size	1.9929" /50.619mm
Max Wall at Crown	0.0553" / 1.405mm	0.0548" /1.392mm
Max Overall Length	0.748" / 19.00mm
Notes	Bearing has 1.65mm oil hole at crown
